£715.00
| Pack Size | 10 |

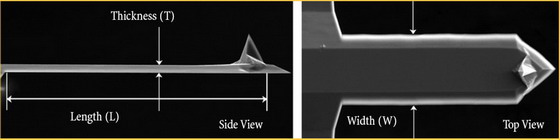

| Cantilever Length Range um | 10 |
| Cantilever Length um | 225 |
| Cantilever Number | 1 rectangular |
| Cantilever Thickness Range um | 0.75 |
| Cantilever Thickness um | 1 |
| Cantilever Width Range um | 7.5 |
| Cantilever Width um | 30 |
| Chip Size mm | 3.6x1.6x0.3 |
| Force Constant Max N/m | 0.5 |
| Force Constant Min N/m | 0.01 |
| Force Constant Typical N/m | 0.11 |
| Material | Single Crystal Silicon, N-type, 0.01-0.025 Ohm-cm, Antimony doped |
| Reflective Side Coating | Al |
| Resonant Frequency Max khz | 39 |
| Resonant Frequency Min khz | 8 |
| Resonant Freq Typical khz | 22 |
| Tip Coating | No |
| Tip Curvature Radius N/m | Typical 2nm, guaranteed <5nm |
